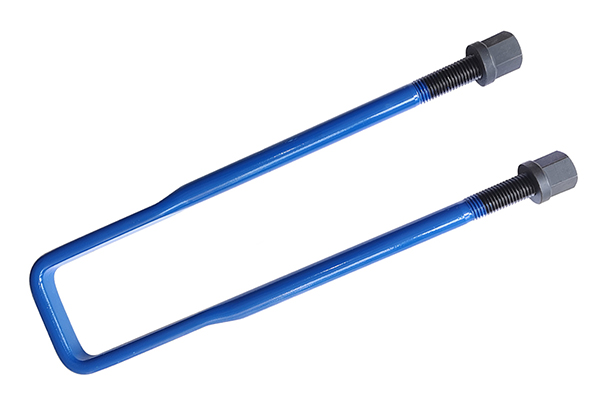

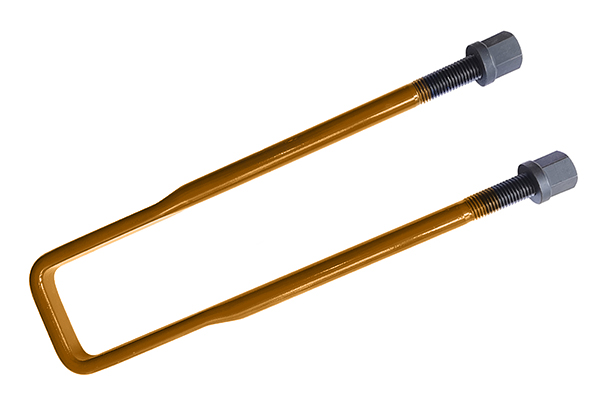

U BOLT TYPE:FORM 5/FORM F
Material: 45#/40Cr(SAE5140)/35CrMo(SAE4135)/42CrMo(SAE4140)
GRADE:6.8,8.8,10.9
Hardness:HRC32-39 / HRC39-42
Color:Black,Grey,Silver,Yellow,BLUE,COFFE
Finishing:Phosphated, Zinc plated, Dacromet
Certificates:ISO9001:2015

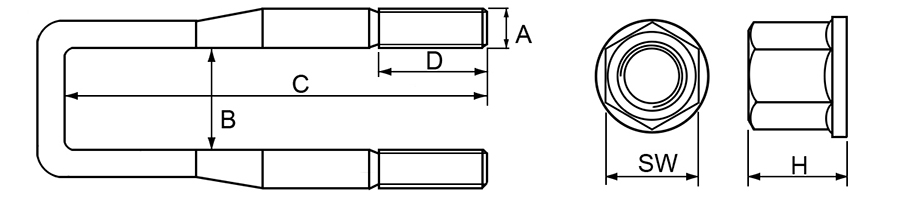

| Part No. | A | B | C | D | SW | H |
|---|---|---|---|---|---|---|
| HX-UFF001 | M24 | 102 | 12"=305 | 100 | 36 | 36 |
| HX-UFF002 | M24 | 102 | 14"=356 | 100 | 36 | 36 |
| HX-UFF003 | M24 | 102 | 16"=406 | 100 | 36 | 36 |
| HX-UFF004 | M24 | 102 | 18"=457 | 100 | 36 | 36 |
| HX-UFF005 | M24 | 102 | 20"=508 | 100 | 36 | 36 |
| HX-UFF006 | M24 | 102 | 22"=559 | 100 | 36 | 36 |
| HX-UFF007 | M27 | 92 | 12"=305 | 100 | 36 | 42 |
| HX-UFF008 | M27 | 92 | 14"=356 | 100 | 36 | 42 |
| HX-UFF009 | M27 | 92 | 16"=406 | 100 | 36 | 42 |
| HX-UFF010 | M27 | 92 | 18"=457 | 100 | 36 | 42 |
| HX-UFF011 | M27 | 92 | 20"=508 | 100 | 36 | 42 |
| HX-UFF012 | M27 | 92 | 22"=559 | 100 | 36 | 42 |
| HX-UFF013 | M27 | 102 | 18"=457 | 100 | 41 | 41 |
| HX-UFF014 | M27 | 102 | 20"=508 | 100 | 41 | 41 |
| HX-UFF015 | M27 | 102 | 22"=559 | 100 | 41 | 41 |
| HX-UFF016 | M27 | 102 | 24"=610 | 100 | 41 | 41 |
| HX-UFF017 | M27 | 102 | 25"=635 | 100 | 41 | 41 |
| HX-UFF018 | M27 | 102 | 26"=660 | 100 | 41 | 41 |
| HX-UFF019 | M22 | 82 | 8"=203 | 90 | 32 | 35 |
| HX-UFF020 | M22 | 82 | 9"=229 | 90 | 32 | 35 |
| HX-UFF021 | M22 | 82 | 10"=254 | 90 | 32 | 35 |
| HX-UFF022 | M22 | 82 | 12"=305 | 90 | 32 | 35 |
| HX-UFF023 | M22 | 82 | 14"=356 | 90 | 32 | 35 |
| HX-UFF024 | M22 | 82 | 16"=406 | 90 | 32 | 35 |
