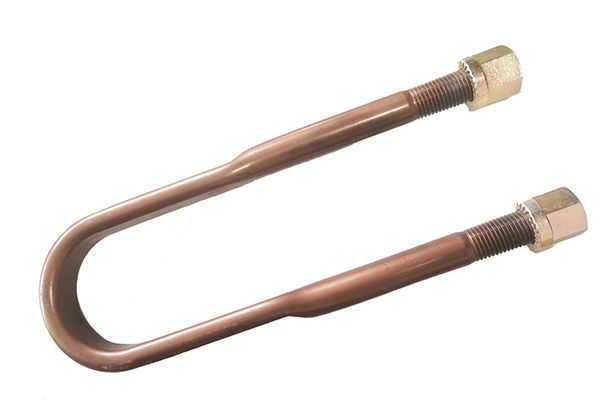

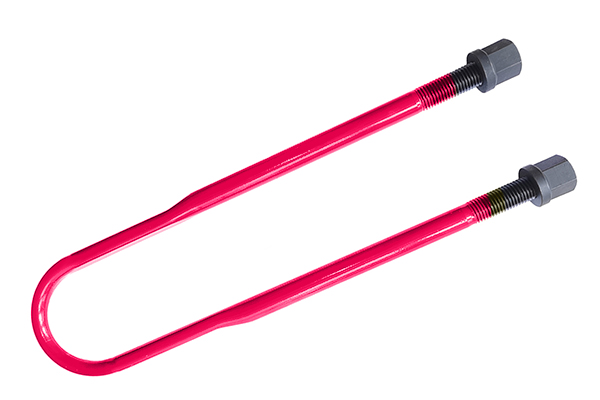

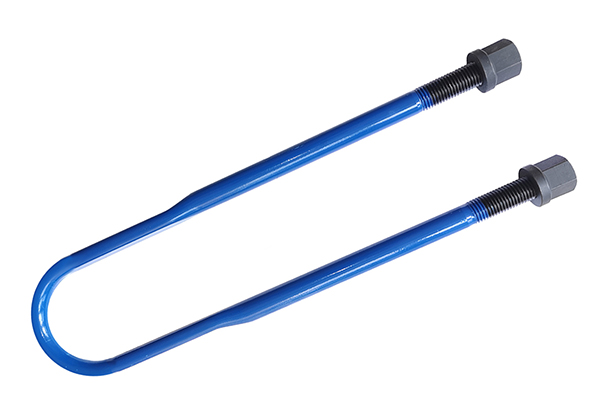

U BOLT TYPE:FORM 3/FORM D
Material: 45#/40Cr(SAE5140)/35CrMo(SAE4135)/42CrMo(SAE4140)
GRADE:6.8,8.8,10.9
Hardness:HRC32-39 / HRC39-42
Color:Black,Grey,Silver,Yellow,BLUE,COFFE
Finishing:Phosphated, Zinc plated, Dacromet
Certificates:ISO9001:2015

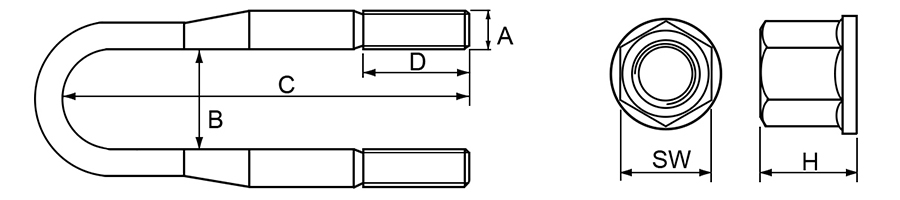

| Part No. | A | B | C | D | SW | H |
|---|---|---|---|---|---|---|
| HX-UFD001 | M24 | 102 | 12"=305 | 100 | 36 | 36 |
| HX-UFD002 | M24 | 102 | 14"=356 | 100 | 36 | 36 |
| HX-UFD003 | M24 | 102 | 16"=406 | 100 | 36 | 36 |
| HX-UFD004 | M24 | 102 | 18"=457 | 100 | 36 | 36 |
| HX-UFD005 | M24 | 102 | 20"=508 | 100 | 36 | 36 |
| HX-UFD006 | M24 | 102 | 22"=559 | 100 | 36 | 36 |
| HX-UFD007 | M27 | 92 | 12"=305 | 100 | 36 | 40 |
| HX-UFD008 | M27 | 92 | 14"=356 | 100 | 36 | 40 |
| HX-UFD009 | M27 | 92 | 16"=406 | 100 | 36 | 40 |
| HX-UFD010 | M27 | 92 | 18"=457 | 100 | 36 | 40 |
| HX-UFD011 | M27 | 92 | 20"=508 | 100 | 36 | 40 |
| HX-UFD012 | M27 | 92 | 22"=559 | 100 | 36 | 40 |
| HX-UFD013 | M27 | 102 | 18"=457 | 100 | 41 | 41 |
| HX-UFD014 | M27 | 102 | 20"=508 | 100 | 41 | 41 |
| HX-UFD015 | M27 | 102 | 22"=559 | 100 | 41 | 41 |
| HX-UFD016 | M27 | 102 | 24"=610 | 100 | 41 | 41 |
| HX-UFD017 | M27 | 102 | 25"=635 | 100 | 41 | 41 |
| HX-UFD018 | M27 | 102 | 26"=660 | 100 | 41 | 41 |
