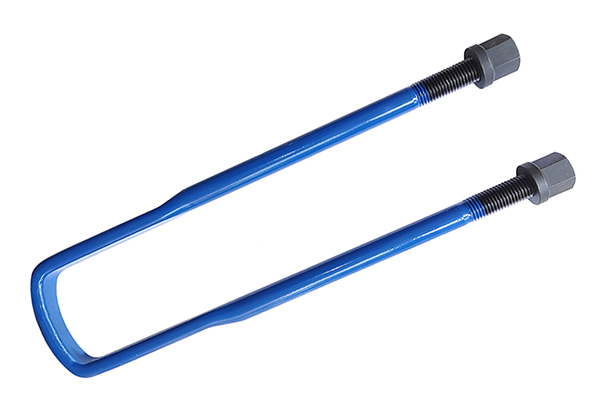

U BOLT TYPE:FORM 13/FORM L
Material: 45#/40Cr(SAE5140)/35CrMo(SAE4135)/42CrMo(SAE4140)
GRADE:6.8,8.8,10.9
Hardness:HRC32-39 / HRC39-42
Color:Black,Grey,Silver,Yellow,BLUE,COFFE
Finishing:Phosphated, Zinc plated, Dacromet
Certificates:ISO9001:2015

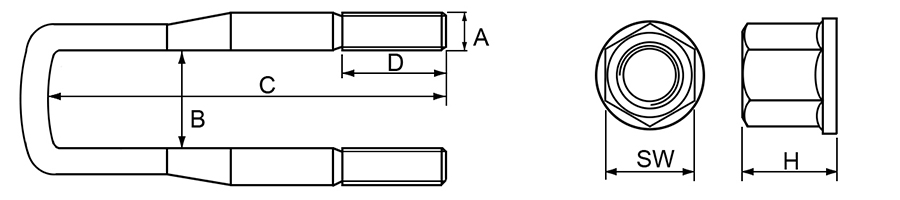

| Part No. | A | B | C | D | SW | H |
|---|---|---|---|---|---|---|
| HX-UFL001 | M18 | 92 | 10"=254 | 85 | 27 | 24 |
| HX-UFL002 | M18 | 92 | 13"=330 | 85 | 27 | 24 |
| HX-UFL003 | M18 | 92 | 15"=381 | 85 | 27 | 24 |
| HX-UFL004 | M18 | 92 | 17"=432 | 85 | 27 | 24 |
| HX-UFL005 | M20 | 82 | 16"=406 | 95 | 30 | 25 |
| HX-UFL006 | M20 | 82 | 17"=432 | 95 | 30 | 25 |
| HX-UFL007 | M20 | 82 | 18"=457 | 95 | 30 | 25 |
| HX-UFL008 | M20 | 82 | 19"=483 | 95 | 30 | 25 |
| HX-UFL009 | M20 | 92 | 12"=305 | 95 | 30 | 30 |
| HX-UFL010 | M20 | 92 | 13"=330 | 95 | 30 | 30 |
| HX-UFL011 | M20 | 92 | 14"=356 | 95 | 30 | 30 |
| HX-UFL012 | M20 | 92 | 15"=381 | 95 | 30 | 30 |
| HX-UFL013 | M22 | 82 | 9"=229 | 90 | 32 | 32 |
| HX-UFL014 | M22 | 82 | 10"=254 | 90 | 32 | 32 |
| HX-UFL015 | M22 | 82 | 11"=279 | 90 | 32 | 32 |
| HX-UFL016 | M22 | 82 | 12"=305 | 90 | 32 | 32 |
| HX-UFL017 | M22 | 82 | 13"=330 | 90 | 32 | 32 |
| HX-UFL018 | M22 | 82 | 14"=356 | 90 | 32 | 32 |
| HX-UFL019 | M22 | 92 | 14"=356 | 85 | 32 | 66 |
| HX-UFL020 | M22 | 92 | 15"=381 | 85 | 32 | 66 |
| HX-UFL021 | M22 | 92 | 16"=406 | 85 | 32 | 66 |
| HX-UFL022 | M22 | 92 | 17"=432 | 85 | 32 | 66 |
| HX-UFL023 | M22 | 92 | 18"=457 | 85 | 32 | 66 |
| HX-UFL024 | M22 | 92 | 20"=508 | 85 | 32 | 66 |
| HX-UFL025 | M24 | 92 | 13"=330 | 100 | 36 | 36 |
| HX-UFL026 | M24 | 92 | 14"=356 | 100 | 36 | 36 |
| HX-UFL027 | M24 | 92 | 15"=381 | 100 | 36 | 36 |
| HX-UFL028 | M24 | 92 | 17"=432 | 100 | 36 | 36 |
| HX-UFL029 | M24 | 92 | 18"=457 | 100 | 36 | 36 |
| HX-UFL030 | M24 | 92 | 20"=508 | 100 | 36 | 36 |
| HX-UFL031 | M24 | 102 | 13"=330 | 100 | 36 | 25 |
| HX-UFL032 | M24 | 102 | 16"=406 | 100 | 36 | 25 |
| HX-UFL033 | M24 | 102 | 19"=483 | 100 | 36 | 25 |
| HX-UFL034 | M24 | 102 | 20"=508 | 100 | 36 | 40 |
| HX-UFL035 | M24 | 102 | 22"=559 | 100 | 36 | 40 |
| HX-UFL036 | M24 | 102 | 125"=635 | 100 | 36 | 40 |
| HX-UFL037 | M27 | 92 | 13"=330 | 100 | 41 | 41 |
| HX-UFL038 | M27 | 92 | 14"=356 | 100 | 41 | 41 |
| HX-UFL039 | M27 | 92 | 16"=406 | 100 | 41 | 41 |
| HX-UFL040 | M27 | 102 | 20"=508 | 100 | 41 | 41 |
| HX-UFL041 | M27 | 102 | 21"=533 | 100 | 41 | 41 |
| HX-UFL042 | M27 | 102 | 22"=559 | 100 | 41 | 41 |
| HX-UFL043 | M30 | 102 | 14"=356 | 90 | 41 | 41 |
| HX-UFL044 | M30 | 102 | 15"=381 | 90 | 41 | 41 |
| HX-UFL045 | M30 | 102 | 16"=406 | 90 | 41 | 41 |
| HX-UFL046 | M30 | 102 | 17"=432 | 90 | 41 | 41 |
| HX-UFL047 | M30 | 102 | 18"=457 | 90 | 41 | 41 |
| HX-UFL048 | M30 | 102 | 20"=508 | 90 | 41 | 41 |
