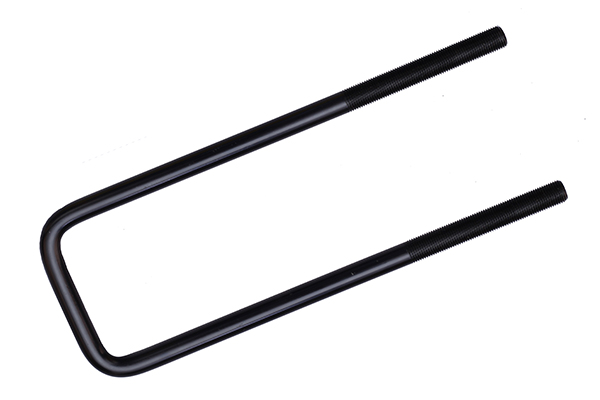

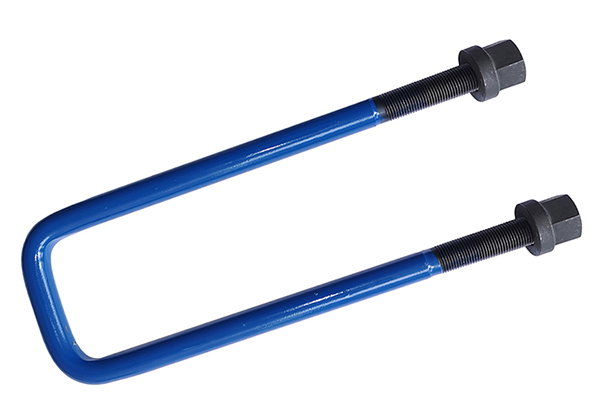

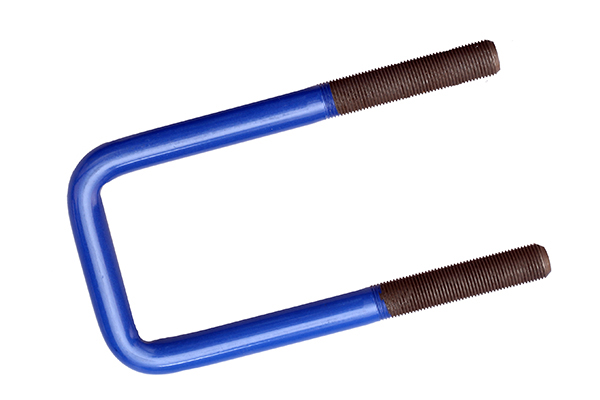

U BOLT TYPE:FORM 4/FORM E
Material: 45#/40Cr(SAE5140)/35CrMo(SAE4135)/42CrMo(SAE4140)
GRADE:6.8,8.8,10.9
Hardness:HRC32-39 / HRC39-42
Color:Black,Grey,Silver,Yellow,BLUE,COFFE
Finishing:Phosphated, Zinc plated, Dacromet
Certificates:ISO9001:2015

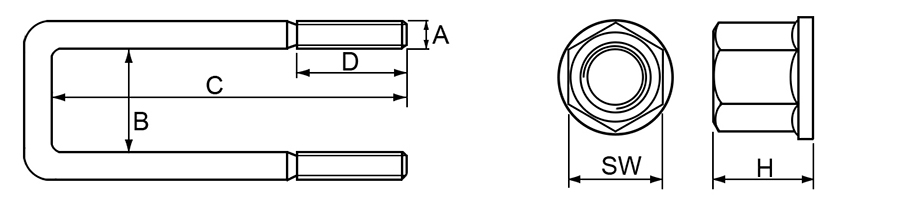

| Part No. | A | B | C | D | SW | H |
|---|---|---|---|---|---|---|
| HX-UFE001 | M14 | 76 | 6"=152 | 80 | 22 | 20 |
| HX-UFE002 | M14 | 76 | 7"=178 | 80 | 22 | 20 |
| HX-UFE003 | M14 | 76 | 8"=203 | 80 | 22 | 20 |
| HX-UFE004 | M16 | 72 | 9"=229 | 80 | 24 | 21 |
| HX-UFE005 | M16 | 72 | 10"=2549 | 80 | 24 | 21 |
| HX-UFE006 | M16 | 72 | 11"=279 | 80 | 24 | 21 |
| HX-UFE007 | M18 | 82 | 8"=203 | 85 | 27 | 27 |
| HX-UFE008 | M18 | 82 | 9"=229 | 85 | 27 | 27 |
| HX-UFE009 | M18 | 82 | 10"=229 | 85 | 27 | 27 |
| HX-UFE010 | M20 | 82 | 12"=305 | 70 | 30 | 32 |
| HX-UFE011 | M20 | 82 | 14"=356 | 70 | 30 | 32 |
| HX-UFE012 | M20 | 82 | 16"=406 | 70 | 30 | 32 |
| HX-UFE013 | M20 | 92 | 7"=178 | 100 | 30 | 30 |
| HX-UFE014 | M20 | 92 | 10"=254 | 100 | 30 | 30 |
| HX-UFE015 | M20 | 92 | 13"=330 | 100 | 30 | 30 |
| HX-UFE016 | M20 | 102 | 18"=457 | 80 | 30 | 32 |
| HX-UFE017 | M20 | 102 | 20"=508 | 80 | 30 | 32 |
| HX-UFE018 | M20 | 102 | 22"=558 | 80 | 30 | 32 |
| HX-UFE019 | M22 | 82 | 8"=203 | 80 | 30 | 32 |
| HX-UFE020 | M22 | 82 | 9"=229 | 80 | 30 | 32 |
| HX-UFE021 | M22 | 82 | 10"=254 | 80 | 30 | 32 |
| HX-UFE022 | M22 | 92 | 12"=305 | 80 | 30 | 32 |
| HX-UFE023 | M22 | 92 | 14"=356 | 80 | 30 | 32 |
| HX-UFE024 | M22 | 92 | 16"=356 | 80 | 30 | 32 |
