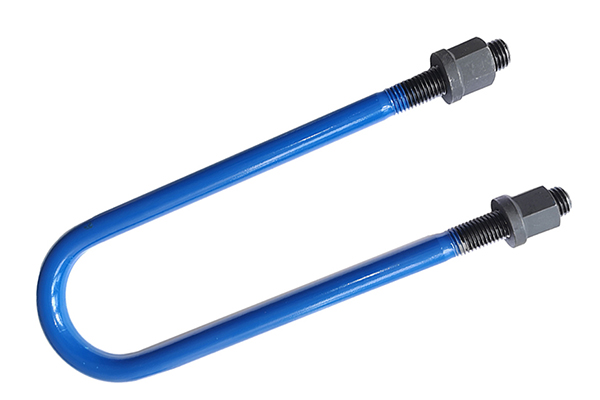

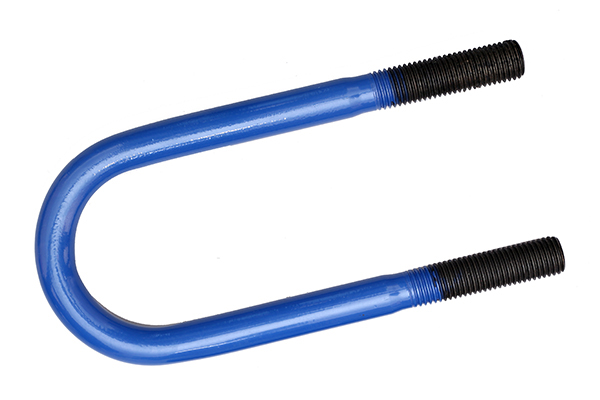

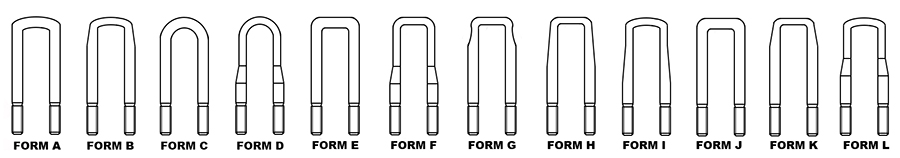

U BOLT TYPE:FORM 2/FORM C
Material: 45#/40Cr(SAE5140)/35CrMo(SAE4135)/42CrMo(SAE4140)
GRADE:6.88.810.9
Hardness:HRC32-39 / HRC39-42
Color:BlackGreySilverYellowBLUECOFFE
Finishing:Phosphated Zinc plated Dacromet
Certificates:ISO9001:2015

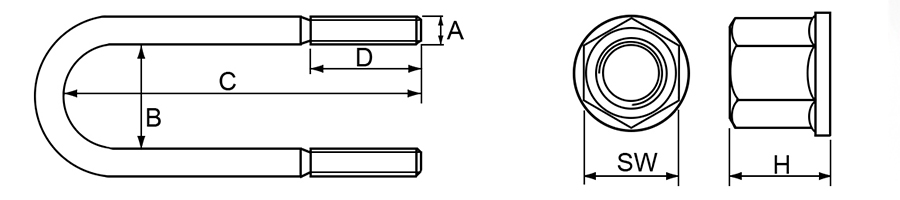

| Part No. | A | B | C | D | SW | H |
|---|---|---|---|---|---|---|
| HX-UFC001 | M12 | 66 | 6"=152 | 70 | 19 | 11 |
| HX-UFC002 | M12 | 66 | 7"=178 | 70 | 19 | 11 |
| HX-UFC003 | M12 | 76 | 8"=203 | 70 | 19 | 11 |
| HX-UFC004 | M12 | 76 | 9"=229 | 70 | 19 | 11 |
| HX-UFC005 | M12 | 78 | 10"=254 | 75 | 19 | 19 |
| HX-UFC006 | M12 | 78 | 11"=279 | 75 | 19 | 19 |
| HX-UFC007 | 1/2"-20 | 72 | 6"=152 | 60 | 19 | 16 |
| HX-UFC008 | 1/2"-20 | 72 | 7"=178 | 60 | 19 | 16 |
| HX-UFC009 | 1/2"-20 | 78 | 8"=203 | 75 | 19 | 19 |
| HX-UFC010 | 1/2"-20 | 78 | 9"=229 | 75 | 19 | 19 |
| HX-UFC011 | M14 | 84 | 10"=254 | 85 | 22 | 18 |
| HX-UFC012 | M14 | 84 | 11"=279 | 85 | 22 | 18 |
| HX-UFC013 | M22 | 127 | 12"=305 | 85 | 32 | 32 |
| HX-UFC014 | M22 | 78 | 16"=406 | 80 | 32 | 32 |
| HX-UFC015 | M24 | 92 | 22"=560 | 80 | 27 | 24 |
| HX-UFC016 | 3/8"-24 | 64 | 6"=152 | 60 | 14 | 14 |
| HX-UFC017 | 7/16"-20 | 64 | 6"=152 | 60 | 19 | 17 |
| HX-UFC018 | 5/8"-18 | 115 | 10"=254 | 75 | 24 | 24 |
| HX-UFC019 | 9/16"-18 | 64/72/78 | 7"/8"/9"/10" | 70 | 22 | 20 |
| HX-UFC020 | 7/8"-9 | 102 | 10"/11"/12"/14" | 80 | 32 | 34 |
| HX-UFC021 | 7/8"-9 | 142 | 15"/16"/17"/18" | 80 | 32 | 34 |
| HX-UFC022 | 3/4"-10 | 76 | 15"/16"/17"/18" | 80 | 32 | 34 |
| HX-UFC023 | 1"-8 | 92 | 15"/16"/17"/18" | 100 | 36 | 40 |
| HX-UFC024 | 1"-8 | 142 | 15"/16"/17"/18" | 100 | 36 | 40 |
