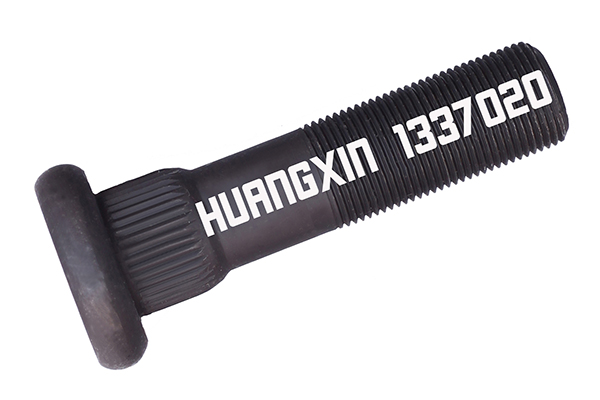

Car Make:DAF
OE NO.:1337 020/0099 720

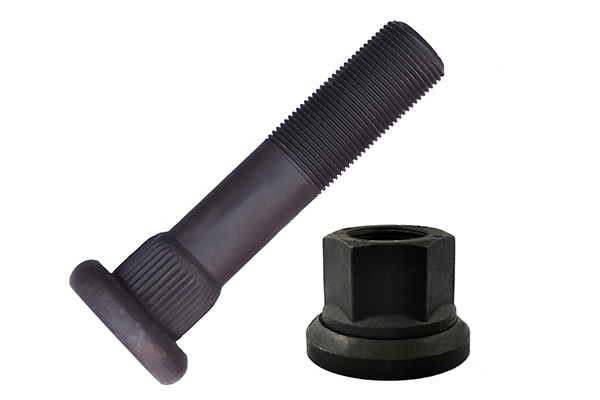

Bolt Size:M22x1.5x72,Total Length 84mm
Nut Size:SW32mm,H32mm
Material:40Cr(SAE5140)/35CrMo(SAE4135)
Grade/Quality:10.9 / 12.9
Hardness:HRC32-39 / HRC39-42
Finishing:Phosphated Zinc plated Dacromet
Color:Black,Grey,Silver,Yellow

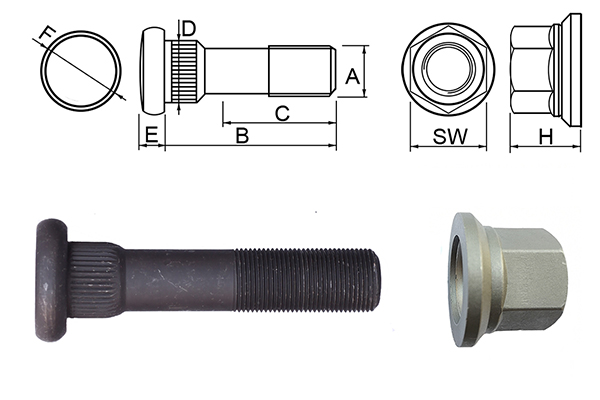

| Part No. | OE No. | A | B | C | D | E | F | NUT SIZE | NUT No. |
|---|---|---|---|---|---|---|---|---|---|
| HX-DAF001 | 1400 082/1703 948 | M18X1.5 | 58 | 33 | 19.5 | 9 | 28 | SW27,H25 | HXN-003 |
| HX-DAF002 | 1400 267 | M18X1.5 | 78 | 35 | 19.5 | 10 | 28 | SW27,H25 | HXN-003 |
| HX-DAF003 | 1488 367/1359 704/1359 709 | M22X1.5 | 88 | 47 | 23.5 | 10 | 40 | SW32,H32 | HXN-013 |
| HX-DAF004 | 1337 020/0099 717 | M22X1.5 | 72 | 46 | 25.4 | 12 | 42 | SW32,H32 | HXN-013 |
| HX-DAF005 | 1309 191/0099 730/0620 646 | M22X1.5 | 85 | 46 | 25.4 | 12 | 42 | SW32,H32 | HXN-013 |
| HX-DAF006 | 1309 190/1356 736/0890 763 | M22X1.5 | 94 | 46 | 25.5 | 12 | 42 | SW32,H32 | HXN-013 |
| HX-DAF007 | 1308 038/0099 717/0620 649 | M22X1.5 | 104 | 46 | 25.4 | 12 | 42 | SW32,H32 | HXN-013 |
| HX-DAF008 | 259931 | M22X2.0 | M22X2.0 | 25 | SW32,H32 | HXN-013 |
