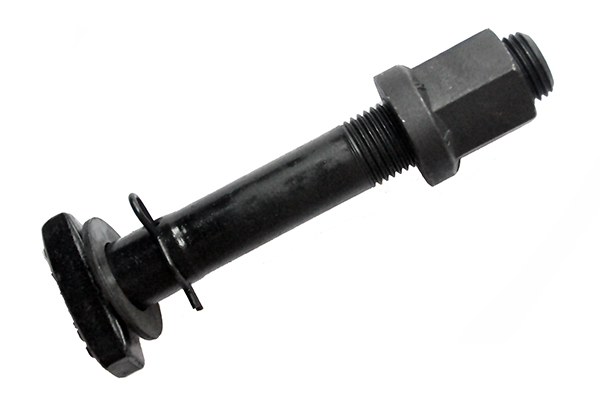

Car Make:Trilex | T-Bolt

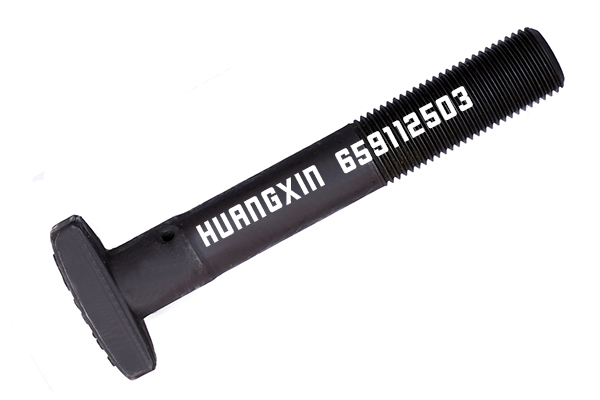

OE NO.:659 112 503
Bolt Size:M20x2.0x125,Total Length 138mm
Material:40Cr(SAE5140)/35CrMo(SAE4135)
Grade/Quality:10.9 / 12.9
Hardness:HRC32-39 / HRC39-42
Finishing:Phosphated Zinc plated Dacromet
Color:Black,Grey,Silver,Yellow

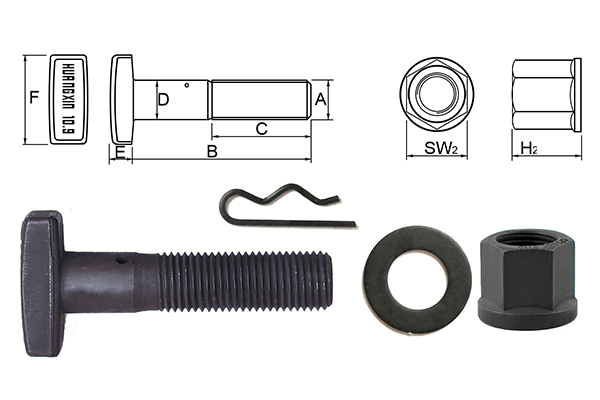

| Part No. | OE | Manufacturer | A | B | C | Nut1 Size | Nut No. |
|---|---|---|---|---|---|---|---|
| HX-TRI001 | 659 112 616 | Trilex | T-bolt | M20x2.0 | 56 | 32 | SW27,H25 | HXN-210 |
| HX-TRI002 | 659 112 500 | Trilex | T-bolt | M20x2.0 | 59 | 38 | SW27,H25 | HXN-210 |
| HX-TRI003 | 659 112 615 | Trilex | T-bolt | M20x2.0 | 60 | 38 | SW27,H25 | HXN-210 |
| HX-TRI004 | 659 112 509 | Trilex | T-bolt | M20x2.0 | 74 | 50 | SW27,H25 | HXN-210 |
| HX-TRI005 | 659 112 611 | Trilex | T-bolt | M20x2.0 | 100 | 52 | SW27,H30 | HXN-211 |
| HX-TRI006 | 659 112 501 | Trilex | T-bolt | M20x2.0 | 110 | 60 | SW27,H30 | HXN-211 |
| HX-TRI007 | 659 112 612 | Trilex | T-bolt | M20x2.0 | 115 | 52 | SW27,H30 | HXN-211 |
| HX-TRI008 | 659 112 503 | Trilex | T-bolt | M20x2.0 | 125 | 65 | SW27,H30 | HXN-211 |
| HX-TRI009 | 659 112 613 | Trilex | T-bolt | M20x2.0 | 130 | 72 | SW27,H30 | HXN-211 |
| HX-TRI010 | 659 112 614 | Trilex | T-bolt | M20x2.0 | 145 | 72 | SW27,H30 | HXN-211 |
