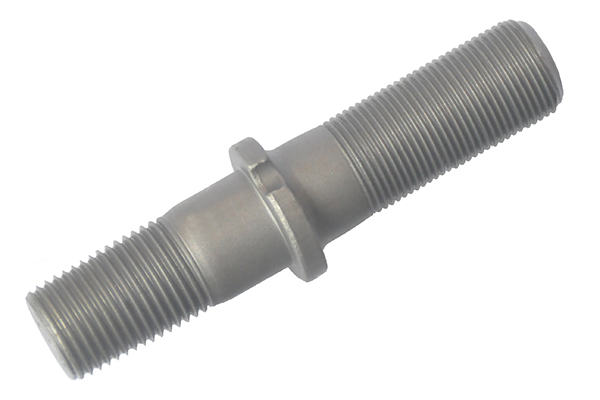

Car Make:BPW | Bergische Achsen
OE NO.:09.806.23.18.0/03.296.23.18.0
Bolt Size:M22x2.0xM22x1.5x97
Nut Size:SW32mmH32mmSW32H17
Material:40Cr(SAE5140)/35CrMo(SAE4135)
Grade/Quality:10.9 / 12.9
Hardness:HRC32-39 / HRC39-42
Finishing:Phosphated Zinc plated Dacromet
Color:BlackGreySilverYellow

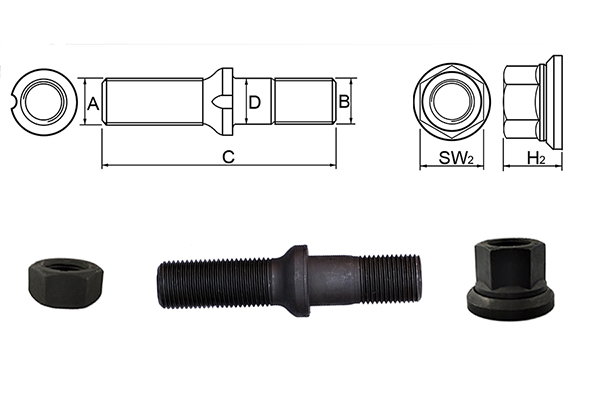

| Part No. | OE | Manufacturer | A | B | C | Nut1 Size | Nut2 Size |
|---|---|---|---|---|---|---|---|
| HX-BPW001 | 03.296.13.09.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 112 | SW32,H32 | SW32,H14 |
| HX-BPW002 | 09.806.23.09.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 97 | SW32,H32 | SW32,H14 |
| HX-BPW003 | 09.806.12.03.0 | BPW | Bergische Achsen | M20x1.5 | M20x1.5 | 98 | SW30,H27 | SW30,H14 |
| HX-BPW004 | 03.296.12.04.0 | BPW | Bergische Achsen | M20x1.5 | M20x1.5 | 98 | SW30,H27 | SW30,H14 |
| HX-BPW005 | 09.806.23.21.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 112 | SW32,H32 | SW32,H14 |
| HX-BPW006 | 03.296.23.15.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 100 | SW32,H32 | SW32,H14 |
| HX-BPW007 | 03.296.23.05.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 100 | SW32,H32 | SW32,H14 |
| HX-BPW008 | 03.296.23.17.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 114 | SW32,H32 | SW32,H14 |
| HX-BPW009 | 09.806.23.18.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 97 | SW32,H32 | SW32,H14 |
| HX-BPW010 | 09.806.23.37.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 97 | SW32,H32 | SW32,H14 |
| HX-BPW011 | 09.806.23.02.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 97 | SW32,H32 | SW32,H14 |
| HX-BPW012 | 09.806.13.02.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 111 | SW32,H32 | SW32,H14 |
| HX-BPW013 | 09.806.13.30.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 111 | SW32,H32 | SW32,H14 |
| HX-BPW014 | 09.806.23.22.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 112 | SW32,H32 | SW32,H14 |
| HX-BPW015 | 09.806.13.14.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 111 | SW32,H32 | SW32,H14 |
| HX-BPW016 | 09.806.23.27.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 97 | SW32,H32 | SW32,H14 |
| HX-BPW017 | 09.806.23.28.0 | BPW | Bergische Achsen | M22x2.0 | M22x1.5 | 112 | SW32,H32 | SW32,H14 |
| HX-BPW018 | 03.296.13.17.0 | BPW | Bergische Achsen | M22x2.0 | M22x2.0 | 128 | SW32,H32 | SW32,H14 |
