Car Make:Scania

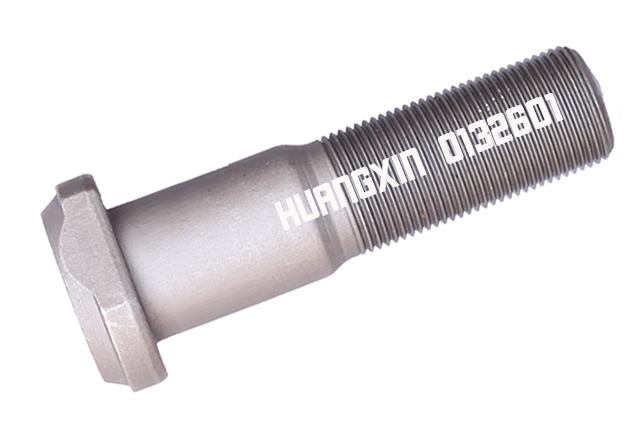

OE NO.:0 132 601/0 132 602
Bolt Size:7/8"-11BSFx90,Total Length 102mm
Nut Size:SW33mm,H32mm
Material:40Cr(SAE5140)/35CrMo(SAE4135)
Grade/Quality:10.9 / 12.9
Hardness:HRC32-39 / HRC39-42
Finishing:Phosphated Zinc plated Dacromet
Color:Black,Grey,Silver,Yellow

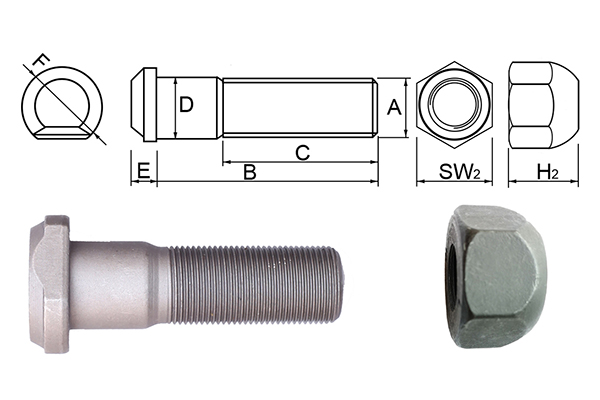

| Part No. | OE No. | A | B | C | D | E | F | NUT SIZE | NUT No. |
|---|---|---|---|---|---|---|---|---|---|
| HX-SCA001 | 0 397 266/1 368 690/0 290 062 | 7/8"-11BSF | 68 | 45 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA002 | 1 368 691 | 7/8"-11BSF | 75 | 53 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA003 | 0 295 953 | 7/8"-11BSF | 86 | 63 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA004 | 0 272 853 | 7/8"-11BSF | 99 | 75 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA005 | 1 368 694 | 7/8"-11BSF | 98 | 73 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA006 | 1 368 695/337 560 | 7/8"-11BSF | 103 | 78 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA007 | 1420 774/337 561 | 7/8"-11BSF | 113 | 88 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA008 | 0 337 559/1 411 980 | 7/8"-11BSF | 92 | 55 | 22.5 | 11 | 36 | SW33,H32 | HXN-016 |
| HX-SCA009 | 1 368 692 | 7/8"-11BSF | 92 | 55 | 22.5 | 11 | 36 | SW33,H32 | HXN-016 |
| HX-SCA010 | 1 368 693 | 7/8"-11BSF | 96 | 61 | 22.5 | 11 | 36 | SW33,H32 | HXN-016 |
| HX-SCA011 | 1868 665 | 7/8"-11BSF | 72 | 46 | 24.3 | 10 | 36 | SW33,H32 | HXN-016 |
| HX-SCA012 | 1868 666 | 7/8"-11BSF | 77 | 51 | 24.2 | 10 | 36 | SW33,H32 | HXN-016 |
| HX-SCA013 | 1868 667 | 7/8"-11BSF | 82 | 58 | 24.2 | 10 | 36 | SW33,H32 | HXN-016 |
| HX-SCA014 | 1868 668 | 7/8"-11BSF | 96 | 74 | 24.2 | 10 | 36 | SW33,H32 | HXN-016 |

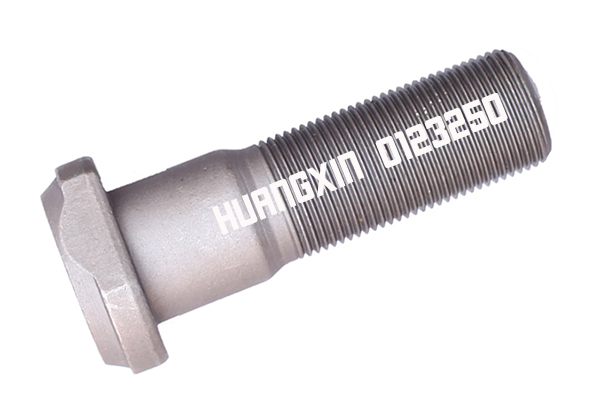

| HX-SCA015 | 0 123 250/0 123 249 | 7/8"-11BSF | 74 | 53 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
| HX-SCA016 | 0 132 601/0 132 602 | 7/8"-11BSF | 90 | 66 | 22.5 | 12 | 36 | SW33,H32 | HXN-016 |
